In the competitive fuel logistics industry, efficiency and safety are non-negotiable. Starway Vehicle’s 35000L petrol diesel tanker trailer is designed to deliver both, making it the ideal choice for companies that transport large volumes of fuel over medium and long distances. Built from high-strength carbon steel and treated with anti-corrosion and anti-static technology, this trailer is engineered for long-term durability and safety.
The multi-compartment tank design is a standout feature, allowing operators to carry different fuel types in a single trip. This means gasoline, diesel, and other petroleum products can be transported simultaneously without contamination. With customizable capacity options ranging from 20,000 to 80,000 liters and configurations from one to multiple compartments, businesses can tailor the trailer to their exact operational needs.
To enhance stability, multiple wave-breaking plates are installed inside the tank to control liquid flow during transit. This reduces sloshing, improves vehicle handling, and ensures safer driving in challenging road conditions. The trailer’s suspension system—available in both air suspension and leaf spring variants—provides adaptability for different terrains, from smooth highways to rugged off-road environments.
Loading and unloading fuel is quick and efficient thanks to the large-diameter valves and optional pump systems. Operators can choose between self-priming and electric pumps to reduce downtime and increase delivery frequency. The low center of gravity design not only improves handling but also increases safety when cornering or navigating steep gradients.
Maintenance is simplified with corrosion-resistant coatings, internal anti-rust protection, and the use of standardized, widely available parts. The 35000L fuel tanker trailer is compatible with top tractor brands like HOWO, FAW, Shacman, Mercedes-Benz, and Volvo, giving operators maximum flexibility. Starway Vehicle ensures that every tanker trailer is a combination of robust engineering, advanced safety features, and user-focused design—helping fuel transport companies achieve higher productivity and lower costs.

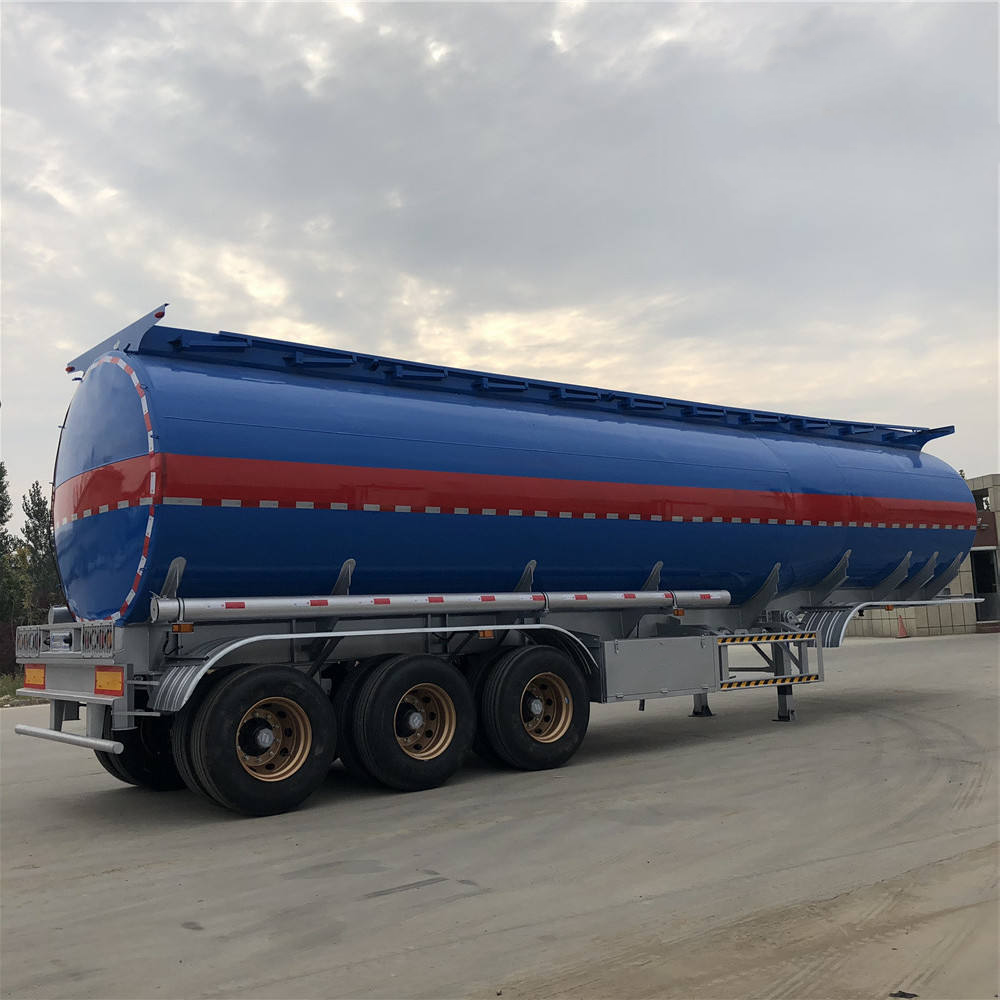

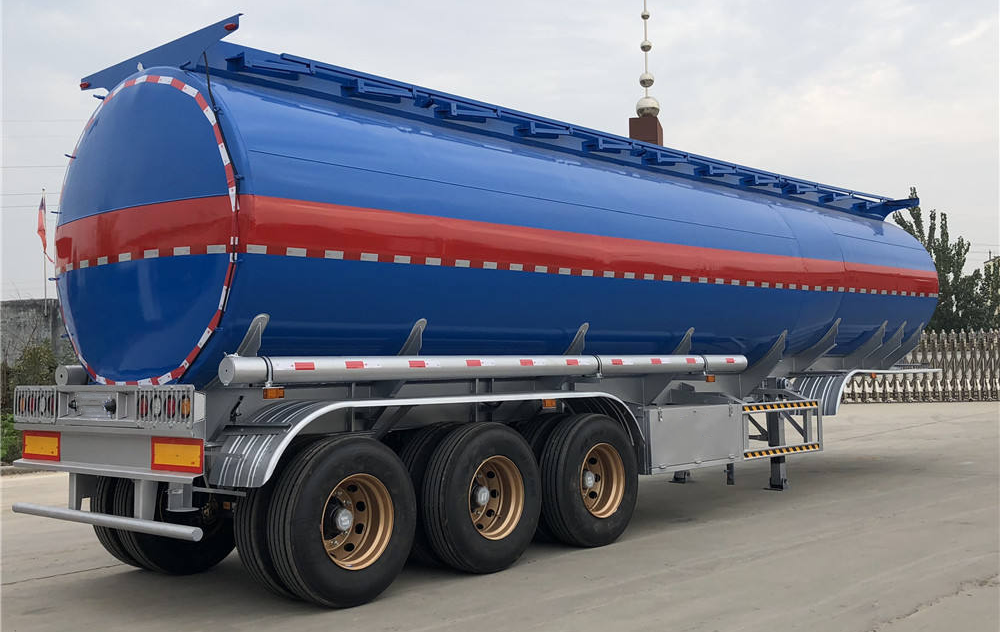

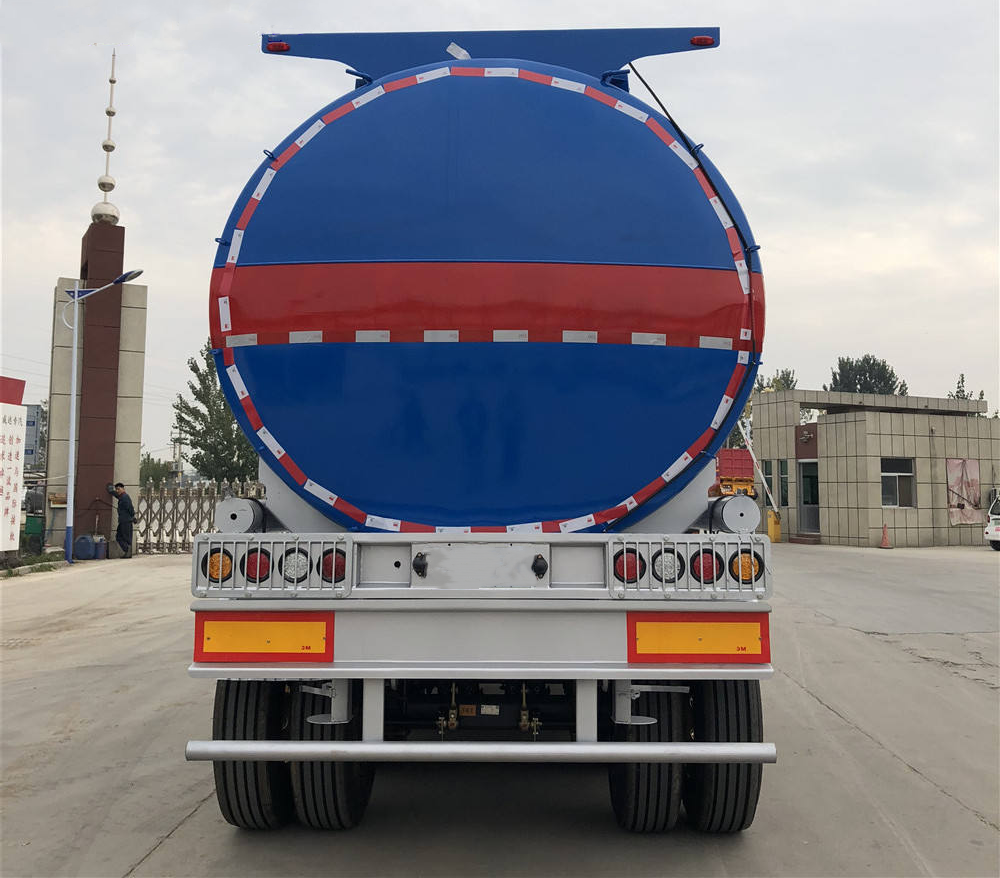

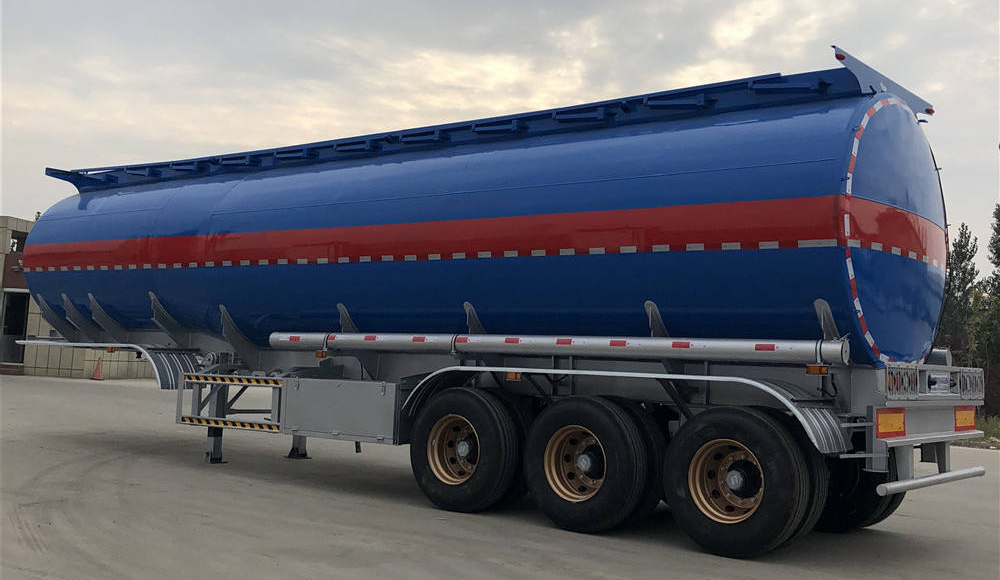

Tri-axle 35CBM Carbon Steel Diesel Tank Trailer With Five Compartments
Tri-axle 35CBM Carbon Steel Diesel Tank Trailer With Five Compartments
Specifications of Tri-axle 35CBM Carbon Steel Diesel Tank Trailer
Dimension (L*W*H): 12500*2500*3800mm
Compartment : 1-9
Axle : 3sets *13 Ton
Suspension : Mechanical suspension
Leaf spring : 13mm(thickness)*90mm(width)*10Layers
Tank thickness : 5mm
Head thickness :6mm
Manhole cover : 500mm diameter,explosion-proff Euro type
Subsea valve : Each compartment with 4inch subsea valve ;flange coupling to discharge pipe
API : Discharge valve with 4inch API
Discharge valve : Each compartment with one discharge valve
Emergency valve : Emergency valve at the rear of tanker trailer, can open/close subsea valves.
