Our fuel tanker trailer is specifically designed for operators who demand unwavering reliability, top-tier safety, and exceptional performance in fuel transport. With customizable capacities ranging from 30 to 60 cubic meters, this tri-axle tanker is precision-engineered to meet a variety of industry needs. While the standard model is made from durable carbon steel, we also offer stainless steel or aluminum alloy for those with specific applications.
The tank’s shell boasts a robust 5mm thickness, complemented by a 6mm thick end cap. This design ensures outstanding resistance to both internal pressure and external impact. We use an advanced monoblock welding process that creates a seamless structure, unlike conventional methods. This not only reduces the risk of leaks but also gives the tanker a cleaner, more professional appearance. You have the flexibility to choose between single or multi-compartment designs; the latter allows you to transport various fuels—like diesel, gasoline, and kerosene—simultaneously, significantly boosting delivery efficiency.
Safety is our top priority. Each compartment of our tanker trailer is equipped with premium aluminum discharge valves, API valves, manholes, wave-breaking plates, subsea valves, and a reliable emergency braking system. The trailer utilizes an American-style suspension with thick 8mm hangers and reinforced leaf springs (90mm wide, 13mm thick) to guarantee stability and a long service life. The main beam is constructed from high-strength Q345 manganese steel, and the heavy-duty FUWA brand axles—tested for over two decades—deliver exceptional durability.
We’ve added a number of thoughtful features to enhance operator safety, including JOST 28-ton landing gear, mechanical walking handrails, and anti-slip steel mesh. The tires are specially selected for wear and heat resistance, making them ideal for challenging road conditions in places like Africa. An interchangeable 2-inch/3.5-inch kingpin ensures compatibility with various tractor units. As a leading manufacturer, we provide solutions that deliver both operational efficiency and maximum safety on every single trip

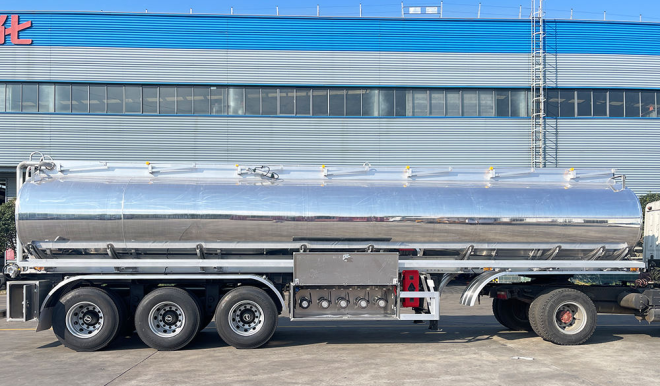

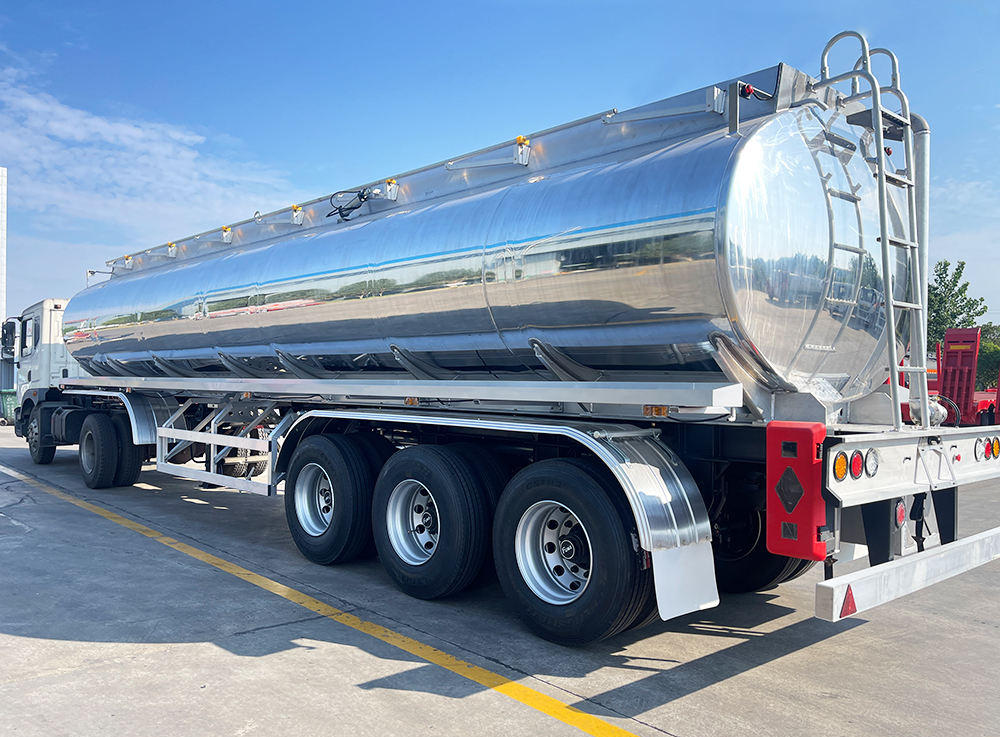

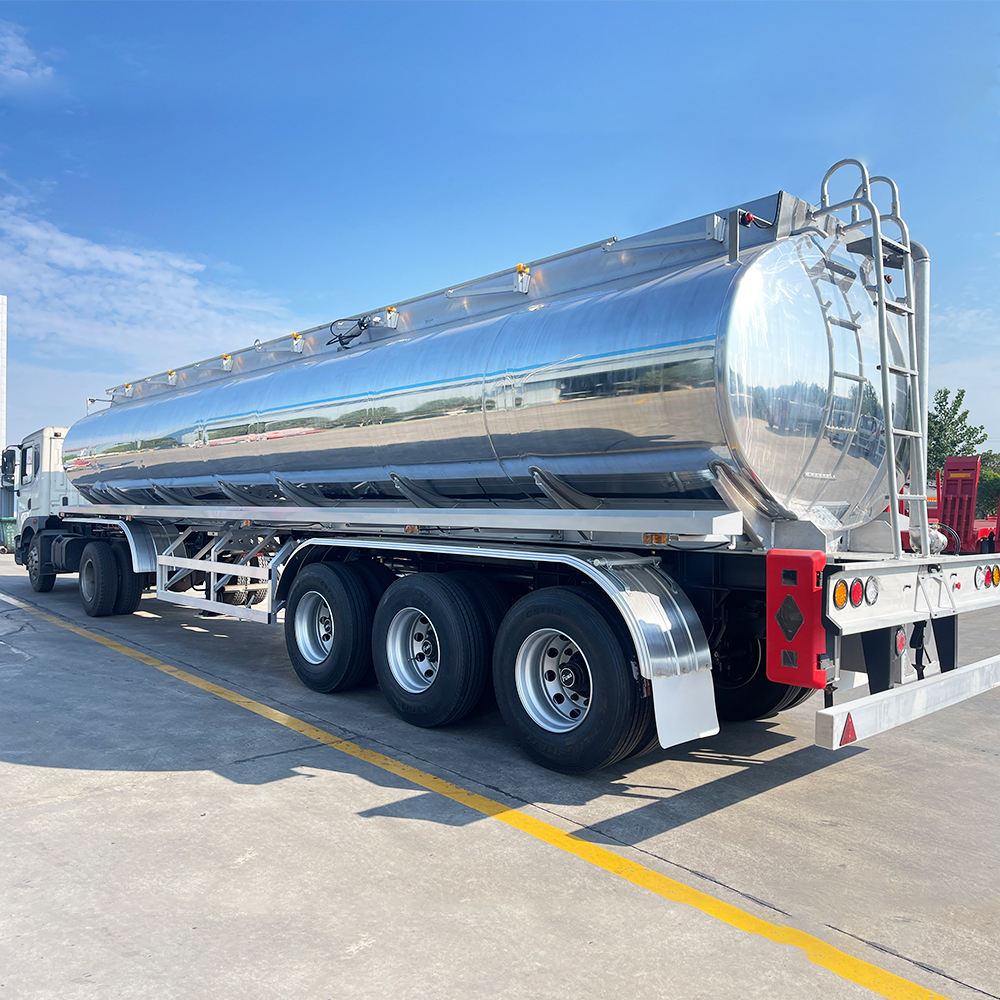

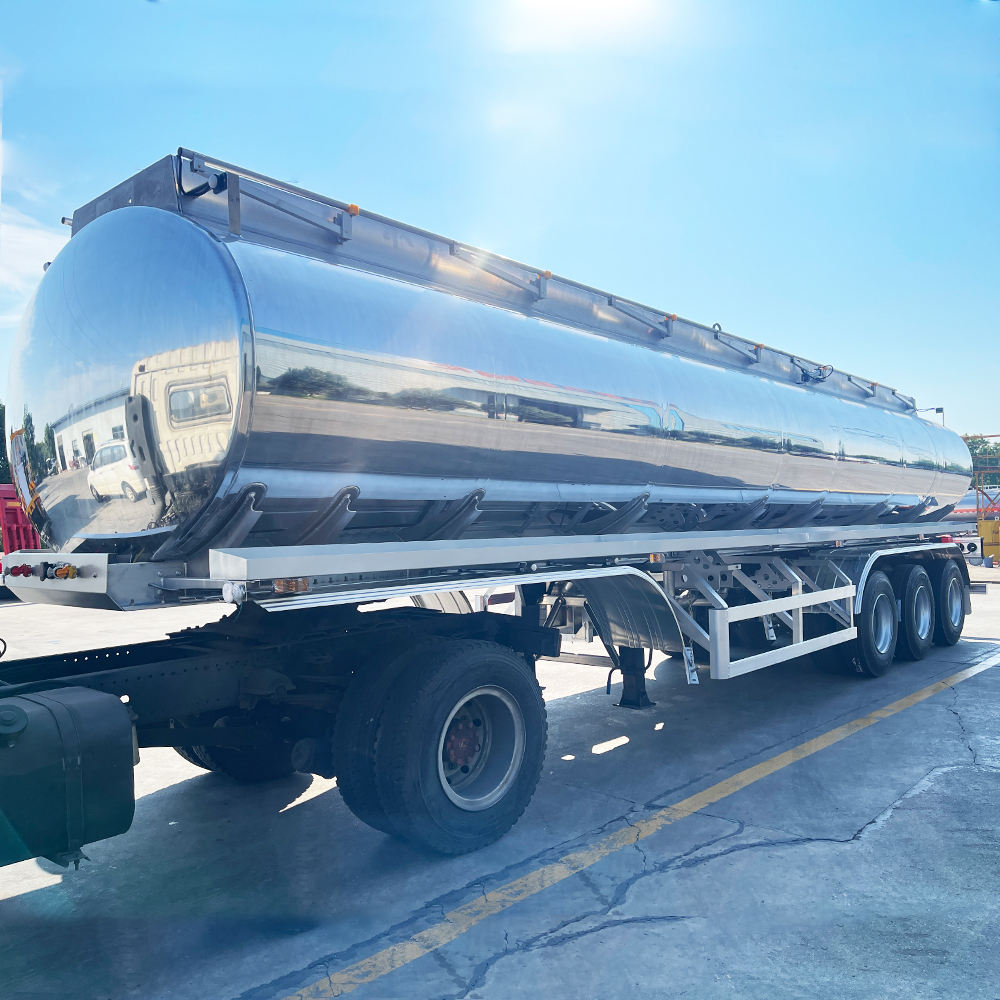

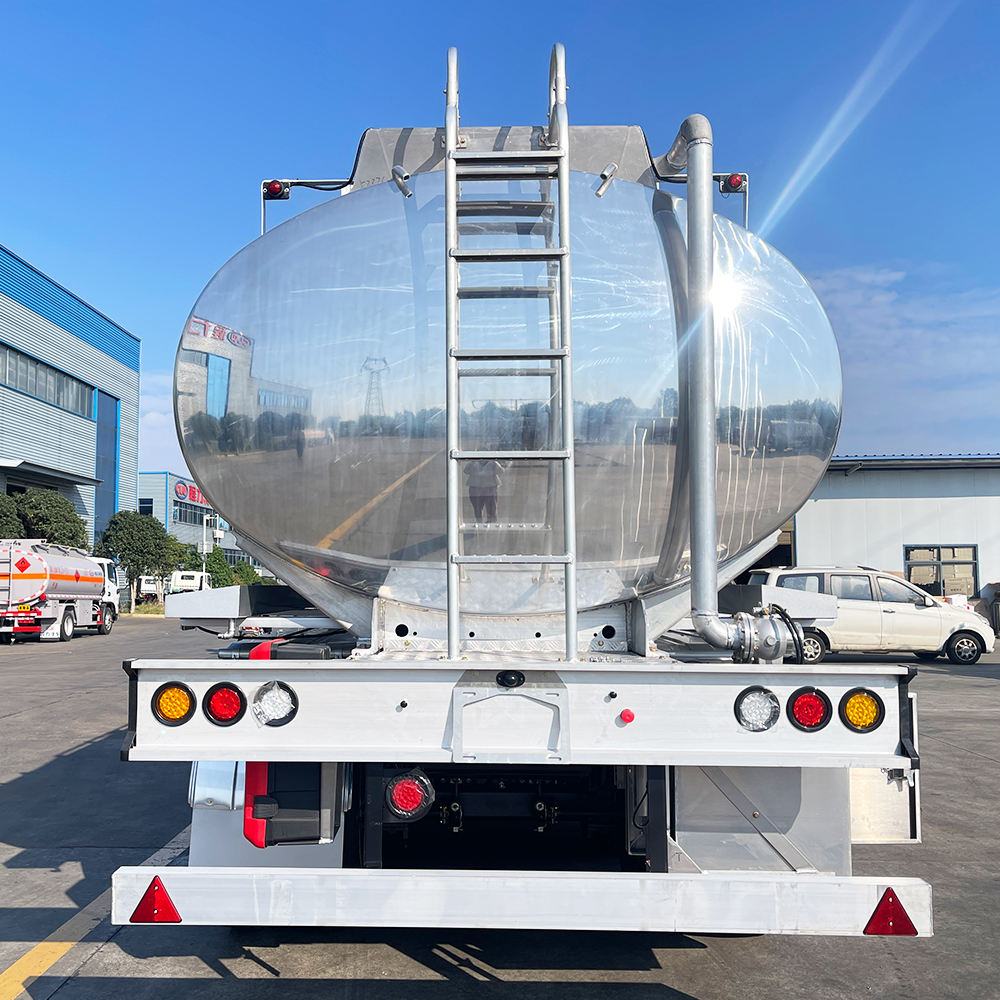

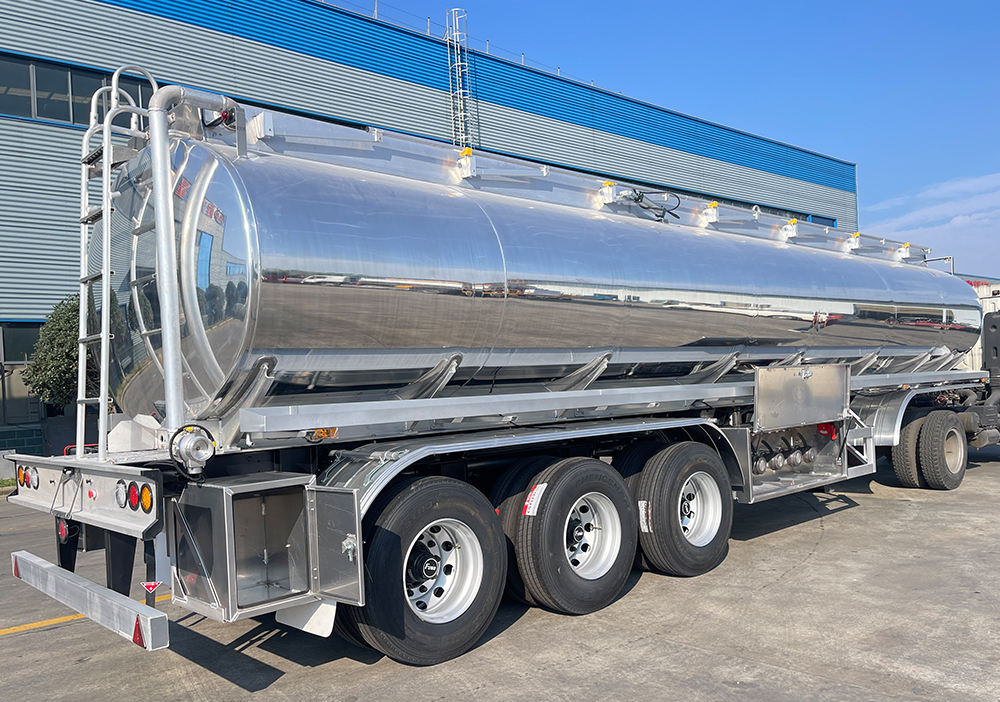

New 42000liter Aluminum Oil Tanker Trailer Fuel Tank Semi Trailer
New 42000liter Aluminum Oil Tanker Trailer Fuel Tank Semi Trailer
Specifications of tanker trailer
Dimension (L*W*H): 12500*2500*3800mm
Compartment : 1-9
Axle : 3sets *13 Ton
Suspension : Mechanical suspension
Leaf spring : 13mm(thickness)*90mm(width)*10Layers
Tank thickness : 5mm
Head thickness :6mm
Manhole cover : 500mm diameter,explosion-proff Euro type
Subsea valve : Each compartment with 4inch subsea valve ;flange coupling to discharge pipe
API : Discharge valve with 4inch API
Discharge valve : Each compartment with one discharge valve
Emergency valve : Emergency valve at the rear of tanker trailer, can open/close subsea valves.
Tire ：12R22.5 *12pcs
Landing gear : 28T
