Starway Vehicle

Special Semi trailer

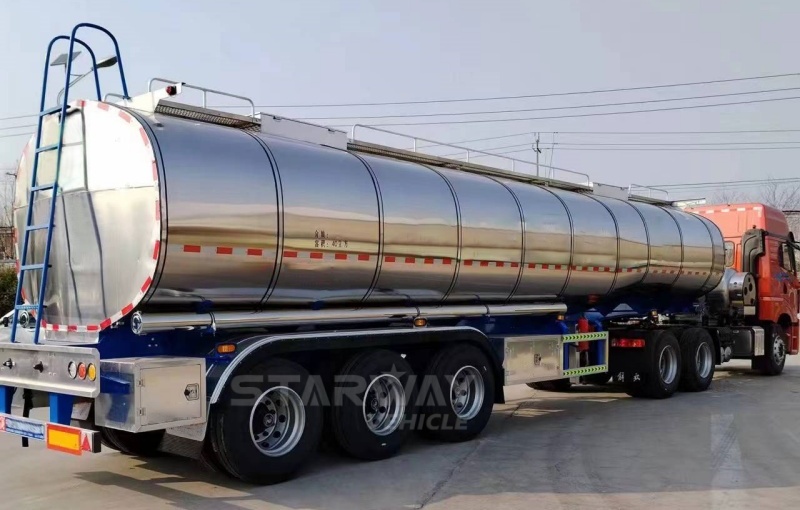

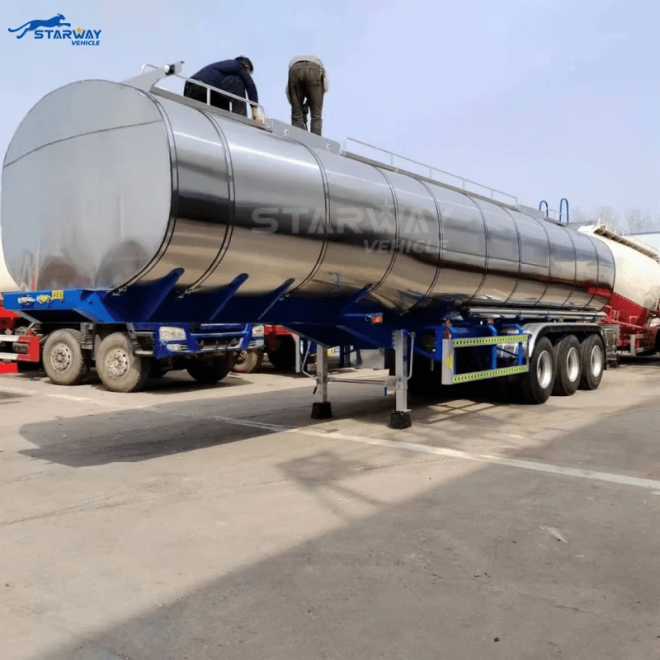

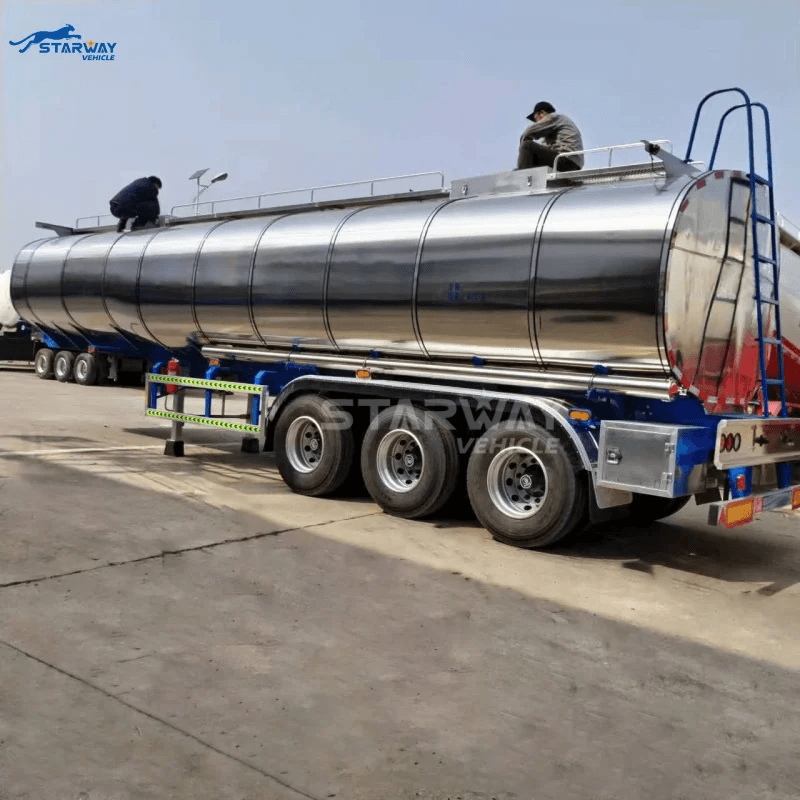

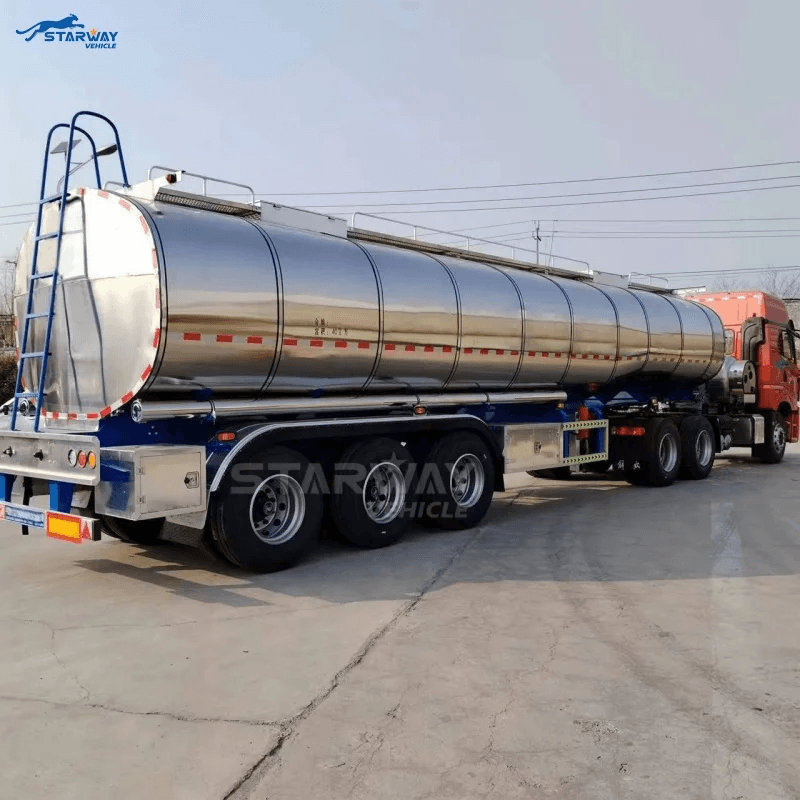

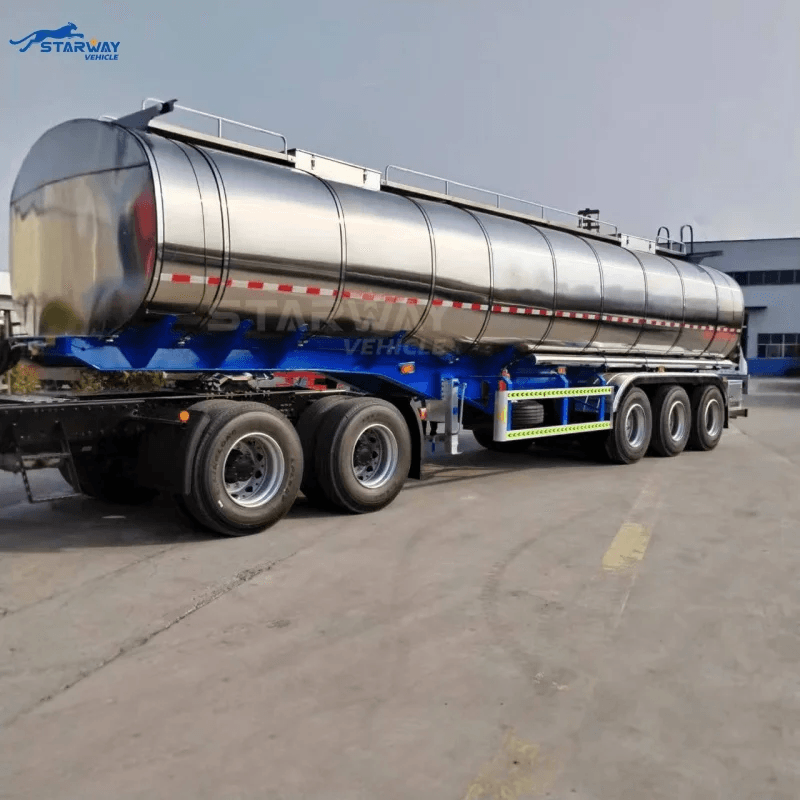

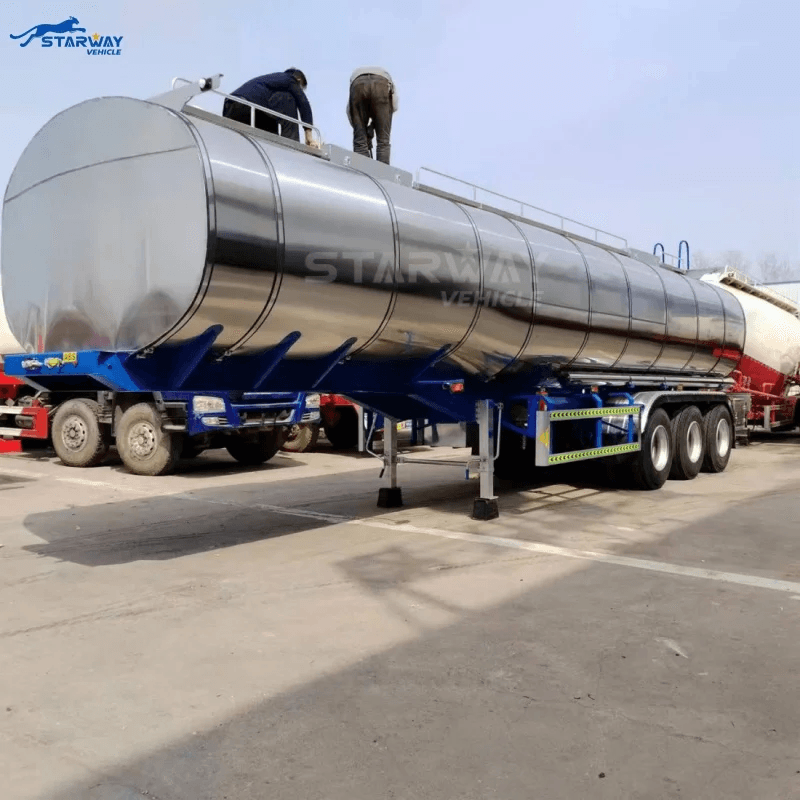

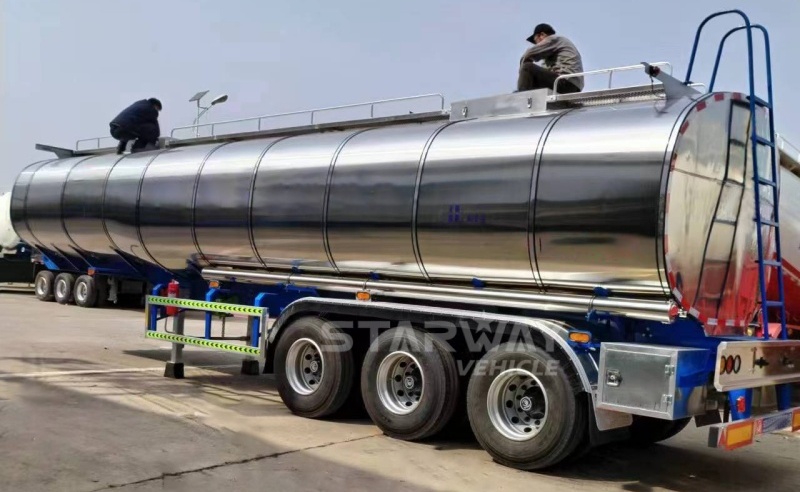

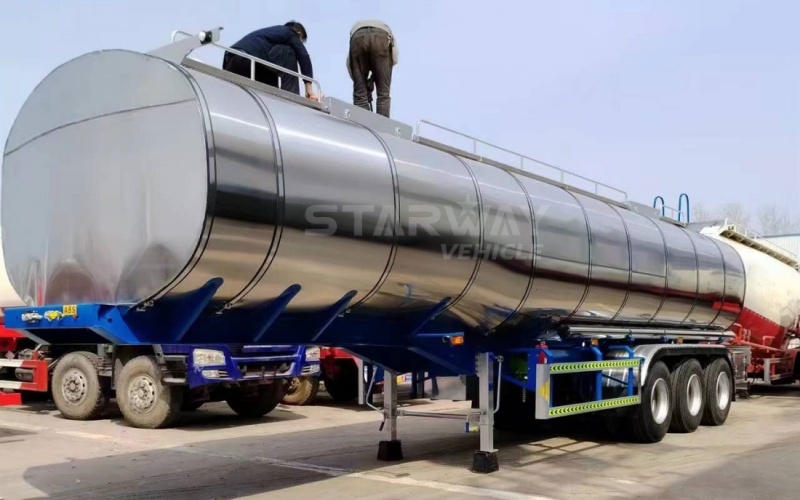

3 axles stainless oil tanker semi trailer

The Starway tri-axle 40,000-liter stainless steel tanker trailer is built to handle the tough job of transporting liquid products. Made from high-quality stainless steel, it’s super durable and resistant to corrosion, making it perfect for carrying all kinds of liquids, from chemicals to food-grade products like milk and edible oils. Plus, the lightweight but strong design means better fuel efficiency and reliable performance, even in challenging conditions.

If you need to keep your liquids at a specific temperature, Starway has you covered with an optional heat-preservation feature. This helps maintain the right temperature during the trip, prevents quality changes, and makes unloading easier. It’s especially useful for long-distance transport or when moving temperature-sensitive products in colder climates.

Safety is a top priority with the Starway tanker. Inside the tank, anti-wave dividers reduce liquid movement, keeping the trailer stable and lowering the risk of tipping. On top of that, every tank goes through high-pressure testing to ensure it’s leak-proof and completely safe to use. With these features, the Starway stainless steel tanker trailer is a reliable and efficient option for businesses transporting liquids.

The advantage of starway 3 axles Stainless Steel tanker trailer

  • Tough and Rust-Resistant: Made from high-quality stainless steel, the Starway tanker is built to last and won’t corrode, making it great for hauling all kinds of liquids, from chemicals to food-grade products like milk or edible oils.
  • Better Fuel Efficiency: The tanker’s lightweight but sturdy design improves fuel efficiency while keeping performance strong, making it a smart and cost-effective choice for the long run.
  • Keeps Liquids at the Right Temperature: For liquids that need temperature control, the optional heat-preservation feature helps keep them stable during transport. This is super handy for long trips or when traveling through colder areas, making unloading easier and keeping the quality intact.
  • Safe and Stable Design: With anti-wave dividers inside the tank to cut down liquid movement and high-pressure testing to prevent leaks, the Starway stainless steel tanker is designed to keep your cargo and journey safe.

Technical Specifications :

Dimension (L*W*H) : 13000*2500*3800mm
Material : Carbon Steel /Aluminum Steel /Stainless Steel
Apply : Fuel,oil etc Liquid Cargo Transporting Apply
Tire : 11.00R20,12R22.5,12.00R20,385/65R22.5 Trangle/Hankook/Brigestone brand
Axles : 13T/16/20/25 to BPW or Starway ,FUWA Brand
Tank Thickness : 5mm
Dish End Thickness : 6mm
Buffle Thickness : 4mm
Compartment : 1 to 9 (Customer Requirement )
Manhole : 3 sets,Aluminum,Anti-Explosion
Discharge Valve : 2-3 inch
Bottom Valve : 4 inch Aluminum
Discharge Pipe : 3 inch rubber hose,6mm/each
Hose Carrier : 2 pcs Carbon Steel/Aluminum
Kingpin : 2 inch or 3.5 inch JOST Brand
Brake system : Wabcoe Valve with air chamber
Landing Gears : Jost brand two-speed Manual operating heavy duty 28 ton
Suapension : Starway vehicle Bogie suspension,spring suspension,Air suspension
Extinguisher : 3mm,4mm,6mm diamond steel plate
Other parts : 2 tool boxes 2 spare tire carrier
Functions : Transport container,loose cargo,bulk cement,bulk rice,etc
Vehicle painting :KTL Electrophoresis painting and power spraying
(Please use these stainless steel fuel tank oil trailer specifications as a reference. Our factory can produce trailers with any specifications you request.)
