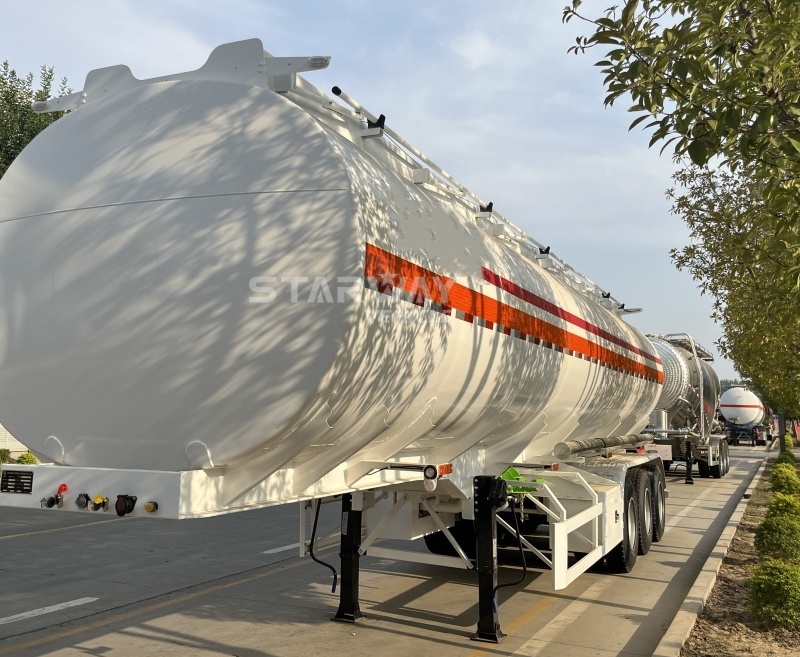

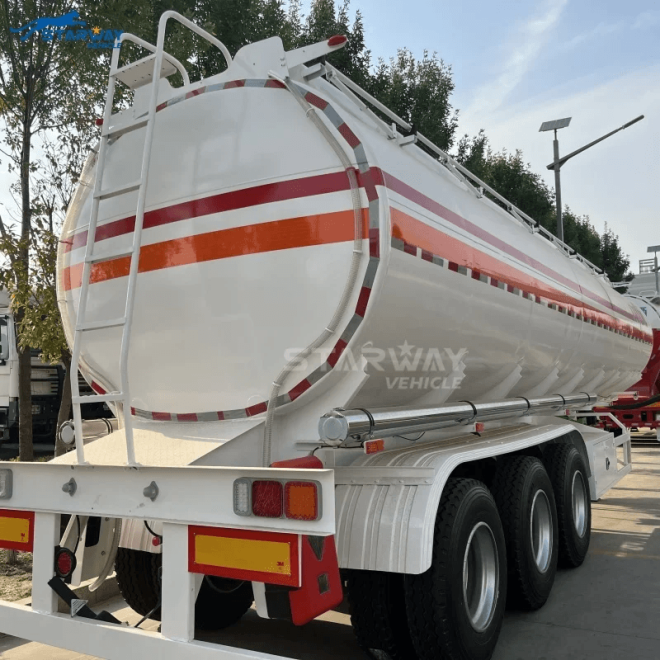

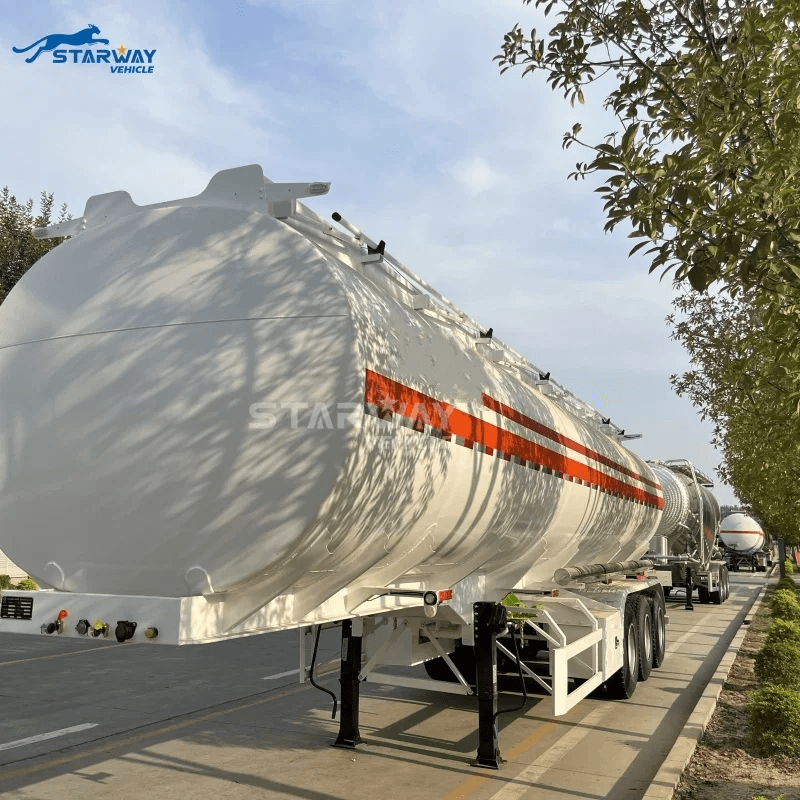

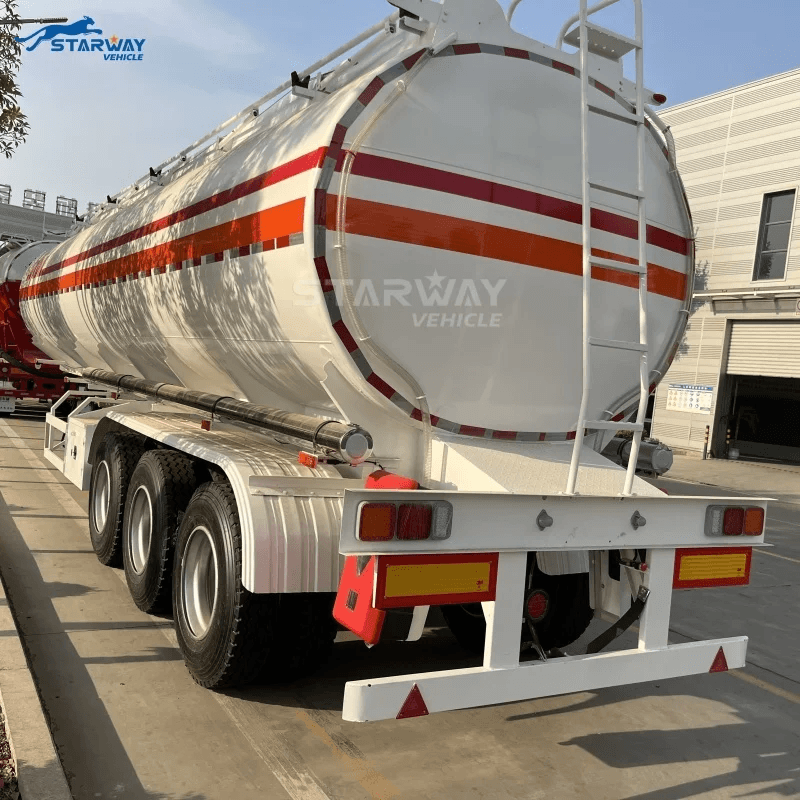

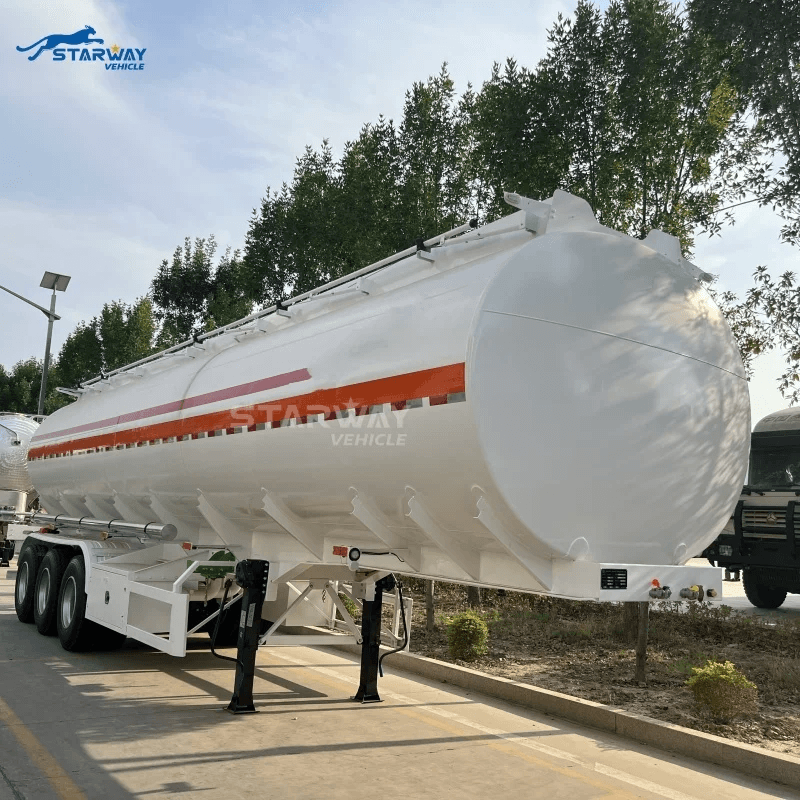

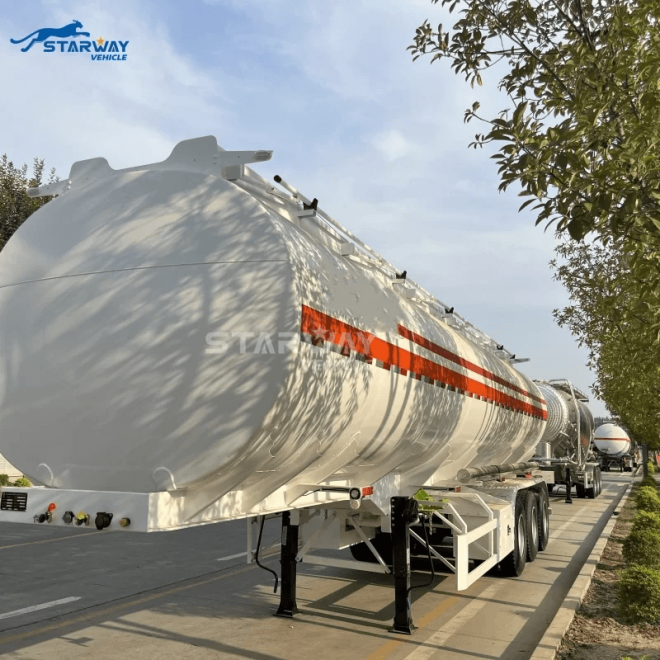

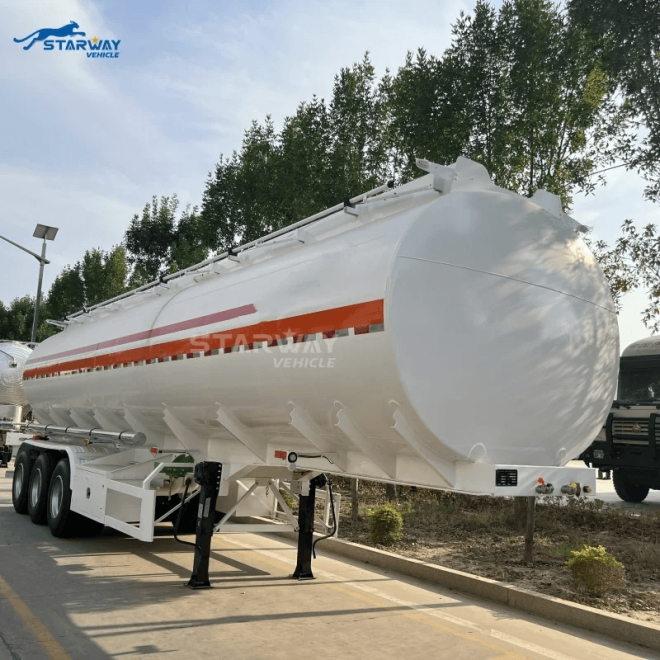

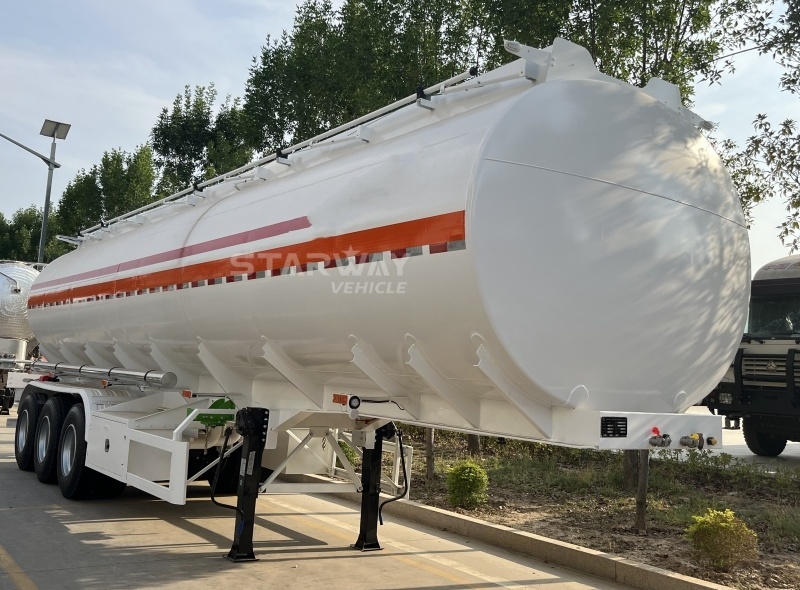

3 axle oil tanker semi trailer

The Starway 3axles oil tanker trailer is built with flexibility and durability, making it a solid choice for safely transporting fuel and other liquids. The tank body, mainly made from carbon steel ,aluminum alloy or stainless steel , can be welded into either an oval or square shape to fit different needs. This trailer can handle up to six different oil products at once, thanks to its multiple compartments that can be customized as needed. For added functionality, Starway also offers a heat-preservation tank option, which keeps products at a stable temperature during transport.

Inside the tank, anti-wave dividers reduce liquid movement, keeping the center of gravity stable for a safer, smoother journey. Each tank goes through high-pressure gas leakage testing to ensure it’s strong, stable, and secure. With these features, the Starway fuel tanker trailer is an invaluable tool for businesses that need a reliable and efficient way to transport fuel.

The advantage of starway 3 axles oil tanker trailer

  • Flexible Tank Design: The tank can be made in either an oval or square shape, so it’s easy to customize based on specific transport needs.
  • Strong, Lightweight Build: Made mostly from aluminum alloy, the tank is not only strong and durable but also lightweight and resistant to corrosion, making it last longer.
  • Carries Multiple Fuel Types: With up to six compartments, this trailer can hold different types of oil products all in one go, which is super handy for transporting multiple fuels.
  • Customizable Compartments: You can adjust the number and size of the compartments to fit your exact needs, helping make each trip as efficient as possible.

Technical Specifications :

Dimension (L*W*H) : 13000*2500*3800mm
Material : Carbon Steel /Aluminum Steel /Stainless Steel
Apply : Fuel,oil etc Liquid Cargo Transporting Apply
Tire : 11.00R20,12R22.5,12.00R20,385/65R22.5 Trangle/Hankook/Brigestone brand
Axles : 13T/16/20/25 to BPW or Starway ,FUWA Brand
Tank Thickness : 5mm
Dish End Thickness : 6mm
Buffle Thickness : 4mm
Compartment : 1 to 9 (Customer Requirement )
Manhole : 3 sets,Aluminum,Anti-Explosion
Discharge Valve : 2-3 inch
Bottom Valve : 4 inch Aluminum
Discharge Pipe : 3 inch rubber hose,6mm/each
Hose Carrier : 2 pcs Carbon Steel/Aluminum
Kingpin : 2 inch or 3.5 inch JOST Brand
Brake system : Wabcoe Valve with air chamber
Landing Gears : Jost brand two-speed Manual operating heavy duty 28 ton
Suapension : Starway vehicle Bogie suspension,spring suspension,Air suspension
Extinguisher : 3mm,4mm,6mm diamond steel plate
Other parts : 2 tool boxes 2 spare tire carrier
Functions : Transport container,loose cargo,bulk cement,bulk rice,etc
Vehicle painting :KTL Electrophoresis painting and power spraying
These carbon steel fuel tank oil trailer specification is just for your reference. Our factory can manufacture any kinds of specification carbon steel fuel tank oil Trailer as your request.
